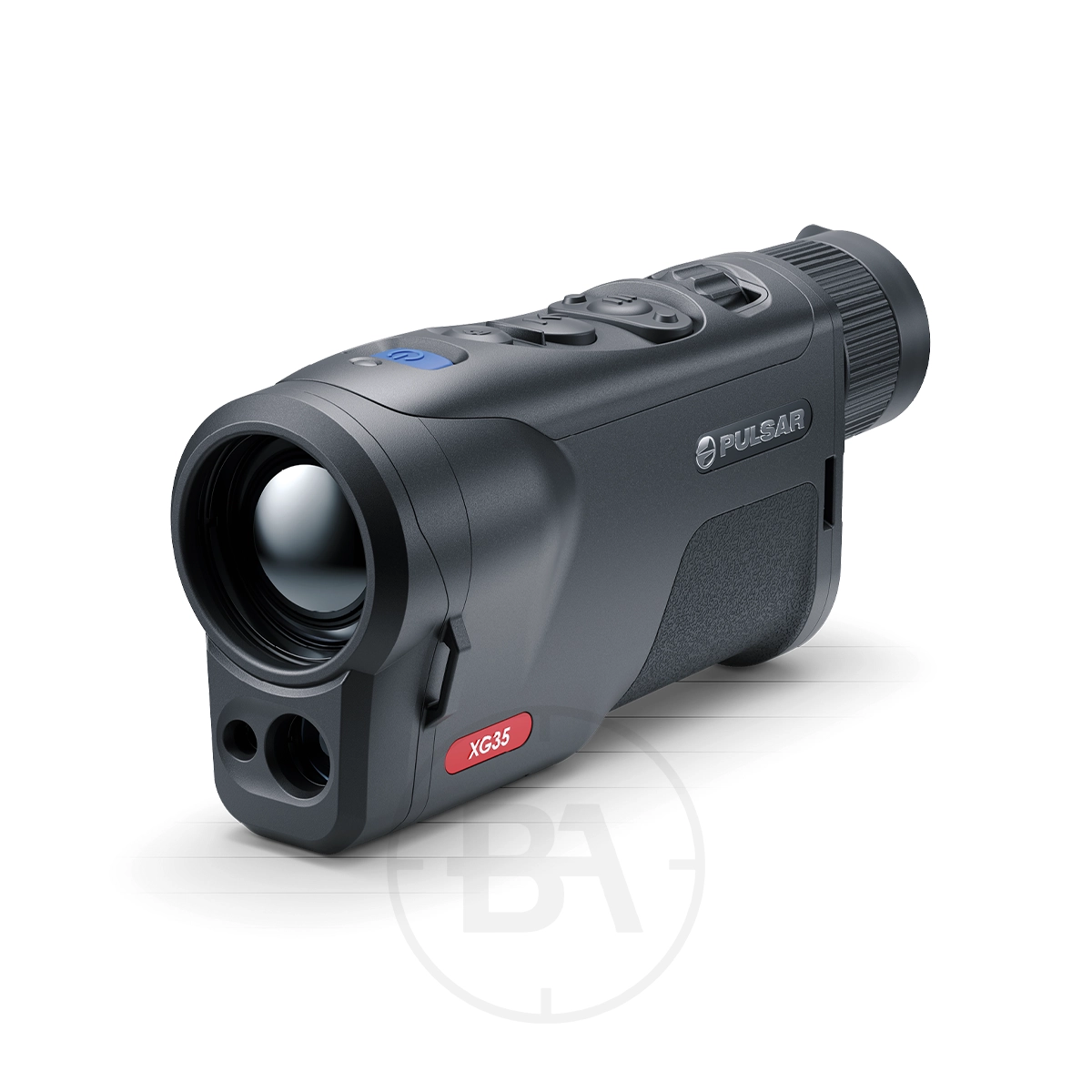

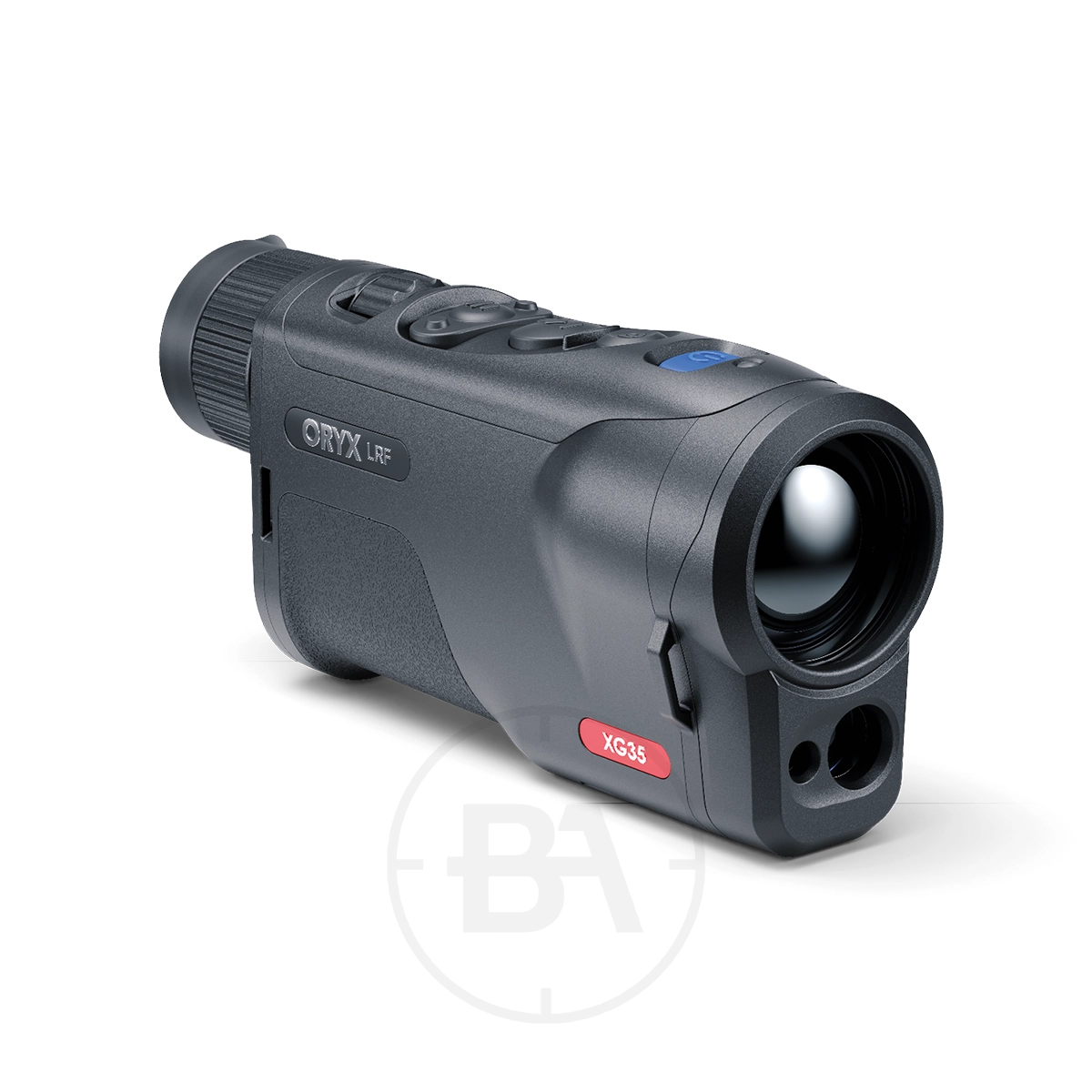

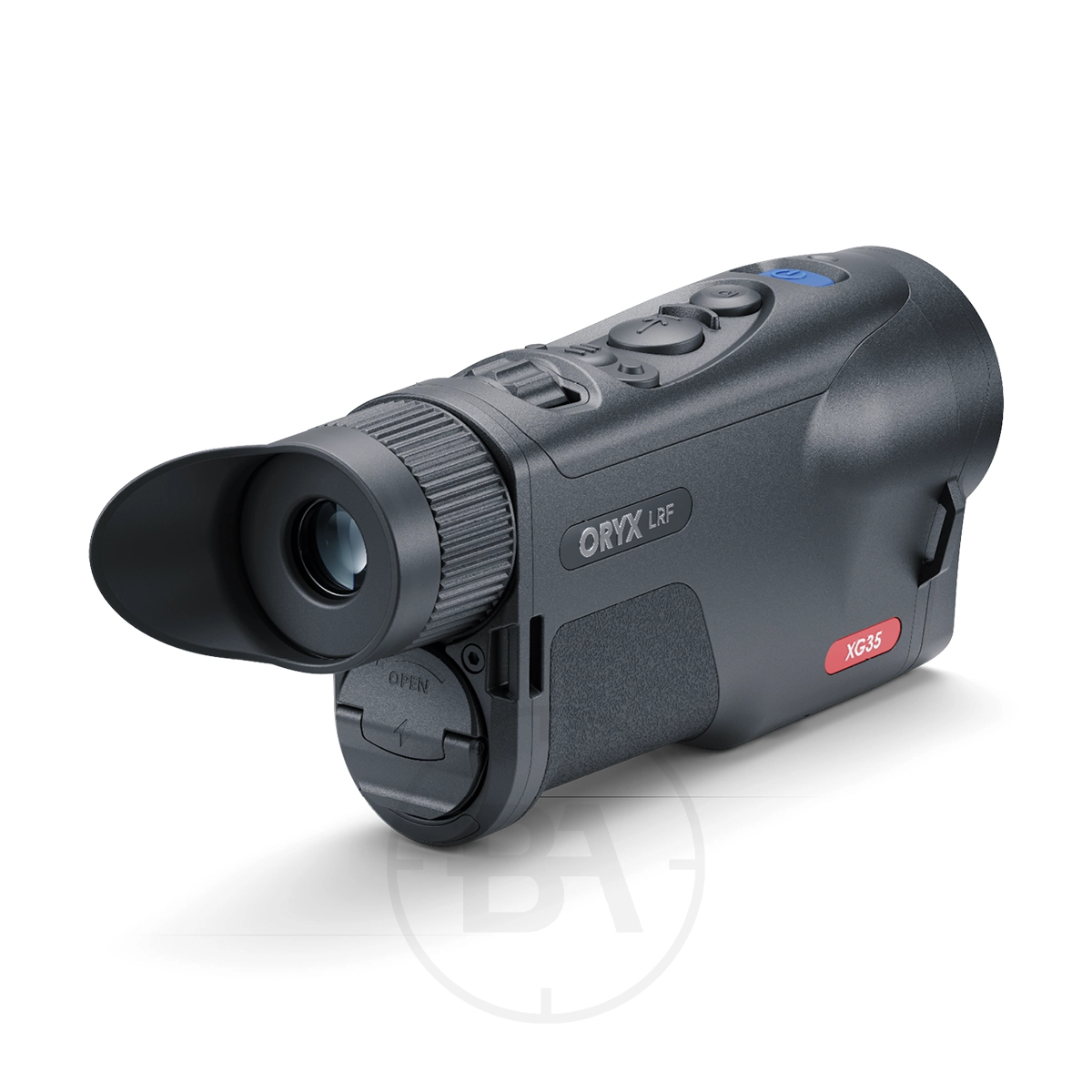

Pulsar Oryx LRF XG35 Thermal Imaging Monocular

Blue Pulsar logo with a stylised white and blue circular emblem on the left and the word "PULSAR" in bold blue capital letters to the right, set against a white background.

£2,189.95

Loading...
Loading...

Description

PULSAR ORYX LRF XG35 THERMAL IMAGING MONOCULAR

The Pulsar Oryx LRF XG35 Thermal Imaging Monocular is a state-of-the-art compact thermal imager that combines high-resolution imaging, a built-in laser rangefinder, and ergonomic, one-handed operation to meet the needs of serious outdoor enthusiasts, hunters, and security professionals. Featuring a highly sensitive 640×480, 12 µm thermal sensor with superior contrast and detail, it provides reliable detection and identification of heat signatures up to 1800 m away. The integrated precision laser rangefinder measures distances up to 1500 m with ±1 m accuracy, while digital image stabilisation enhances view clarity in dynamic conditions. With the dual-battery system offering up to 12 hours runtime, built-in recording, and Stream Vision 2 app connectivity, it’s packed with advanced features in a rugged IP67 waterproof magnesium housing.

KEY FEATURES

Advanced Thermal Sensor: 640×480, 12 µm sensor for clear heat imaging.

Long Detection Range: Detects heat signatures up to 1800 m away.

Built-in Laser Rangefinder: Measures distances up to 1500 m with ±1 m accuracy.

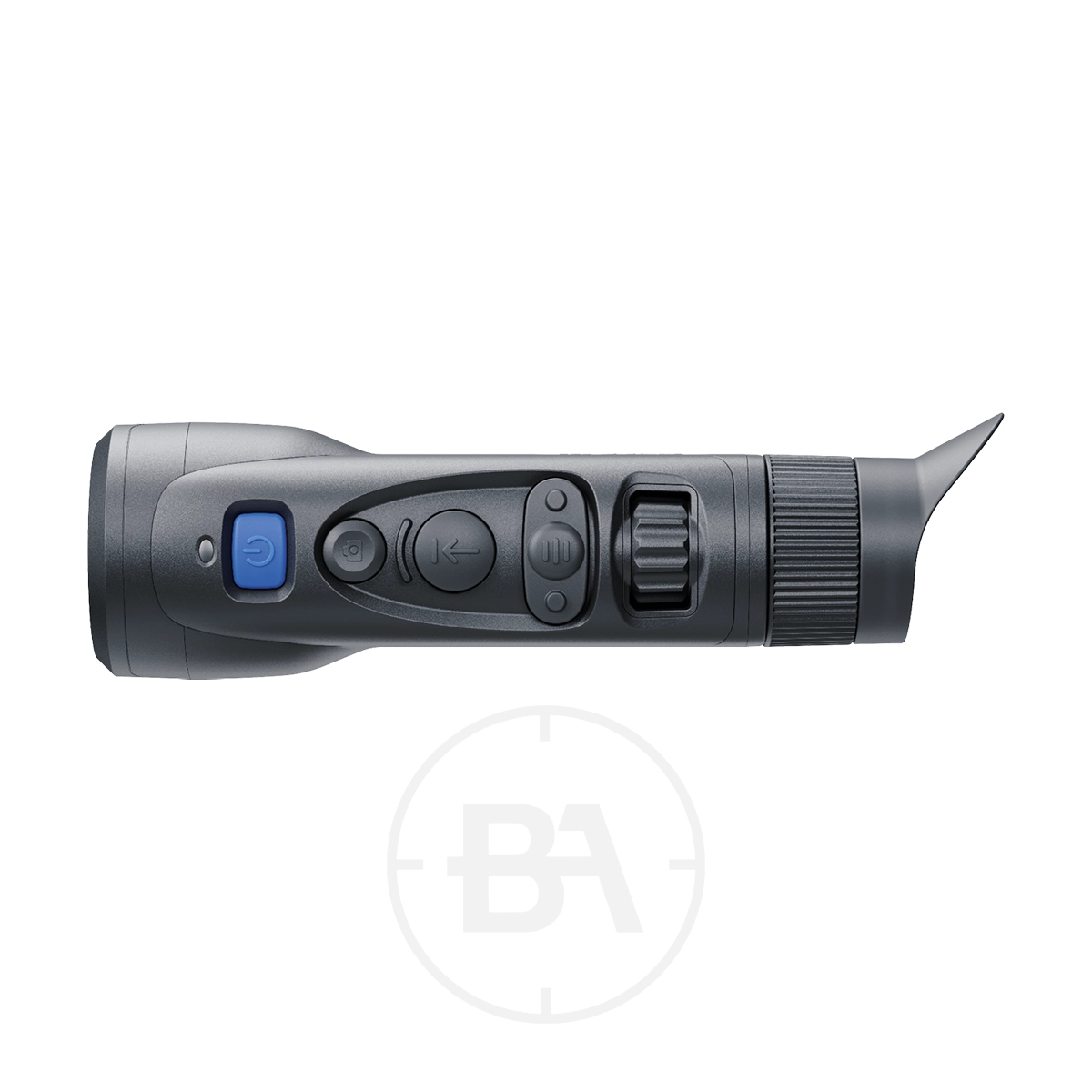

One-Handed Operation: Rear focus wheel and ergonomic layout for ease of use.

Digital Image Stabilisation: Reduces shake and improves image quality.

Dual Battery System: Internal and removeable APS5 battery for up to 12 hours runtime.

Rugged Durability: IP67 waterproof and dustproof magnesium alloy body.

High-Resolution Display: AMOLED screen with crisp visuals.

Recording Function: Capture video with audio and still images.

App Connectivity: Stream Vision 2 support for remote control and media transfer.

Additional information

Weight 0.5 kg
Dimensions 179 × 52 × 77 mm
Thermal Sensor

640×480, 12µm

sNETD

<20 mK

NETD

<40 mK

Frame Rate

50 Hz

Objective Lens

35mm f1.0

Magnification

2.5 to 20x

FOV (HxV), Degrees

12.5°

Eye Relief

14 mm

Display

1024×768 AMOLED HD

Detection Range

1800 m

Rangefinder

Built-in Laser Rangefinder

Rangefinder Measuring Distance

Up to 1500 m

Rangefinder Measuring Accuracy

±1 m

Safety Class for Laser Equipment

1 (according to IEC 60825-1:2014)

Rangefinder Wavelength

905 nm

Video Recording

Yes, with audio + still image capture

Video / Photo Resolution

1024×768

Video / Photo Format

.mp4/.jpg

Built-in Memory

64 GB

Wireless Protocol

Wi-Fi

Wireless Standard

IEEE 802.11 b/g/n/ac (WPA)

Frequency

2.5/5 Ghz

Level of Protection

IP67 (IEC60529)

Operating Temperatures

-25 to +40°C

Support Application(s)

Stream Vision 2

Output Voltage

3.0 – 4.2 V

Battery Type

APS 5 Li-ion Battery Pack

Capacity

4900 mAh

Battery Life

Up to 12 hours (depending on temperature; tested at 22°C)

External Power Supply

5V; 9V (USB Type-C Power Delivery)

Body Material

Magnesium Alloy

SKU PUL-77504

£2,189.95

Available on back-order
